MC-18 Single Full Extension Concealed Slide With Latch
MC-18
Category: Concealed Slide
-
Material
Zinc Plating Steel -
Max. loading capacity
20 KG -
Durability
50,000 Cycles -
Finish
Zinc Plating -
Length
10"-18" 5 Types of Length
Concealed Slide
The combination of smooth sliding and strong structure.
Using precision pulleys and wear-resistant tracks,
Bringing a timeless, lightweight and silent silky walking experience.
Technical Specifications
| Parameter | Description / Specification |
|---|---|
| Material | Zinc Plating Steel |
| Max. loading capacity |
20 KG |
| Durability |
50,000 Cycles |
| Finish | Zinc Plating |
| Length specifications |
10", 12", 14", 16", 18" (5 Types of Length In Total) |
MC-18
Installation Guide

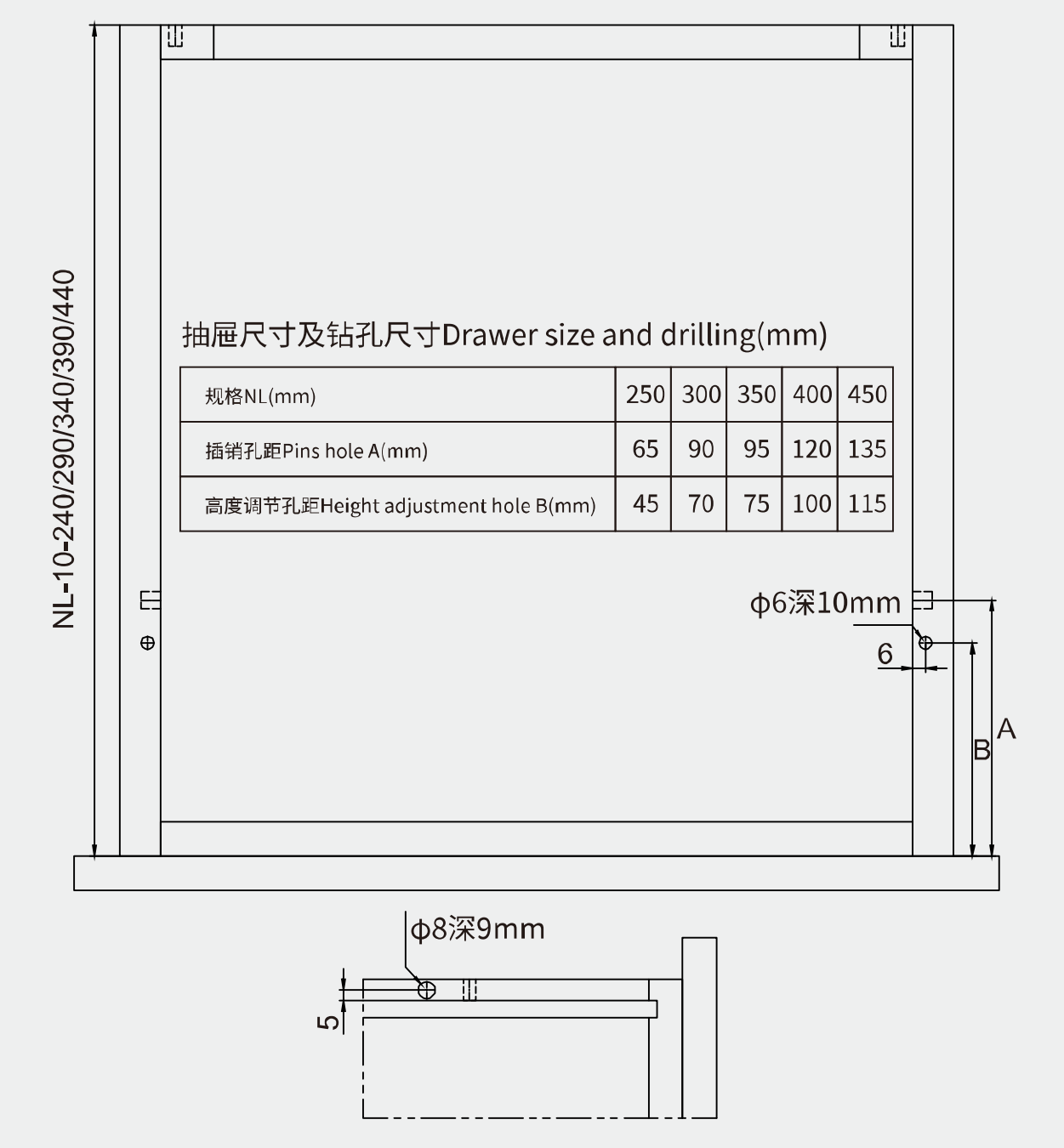

Slide Installation Drawing

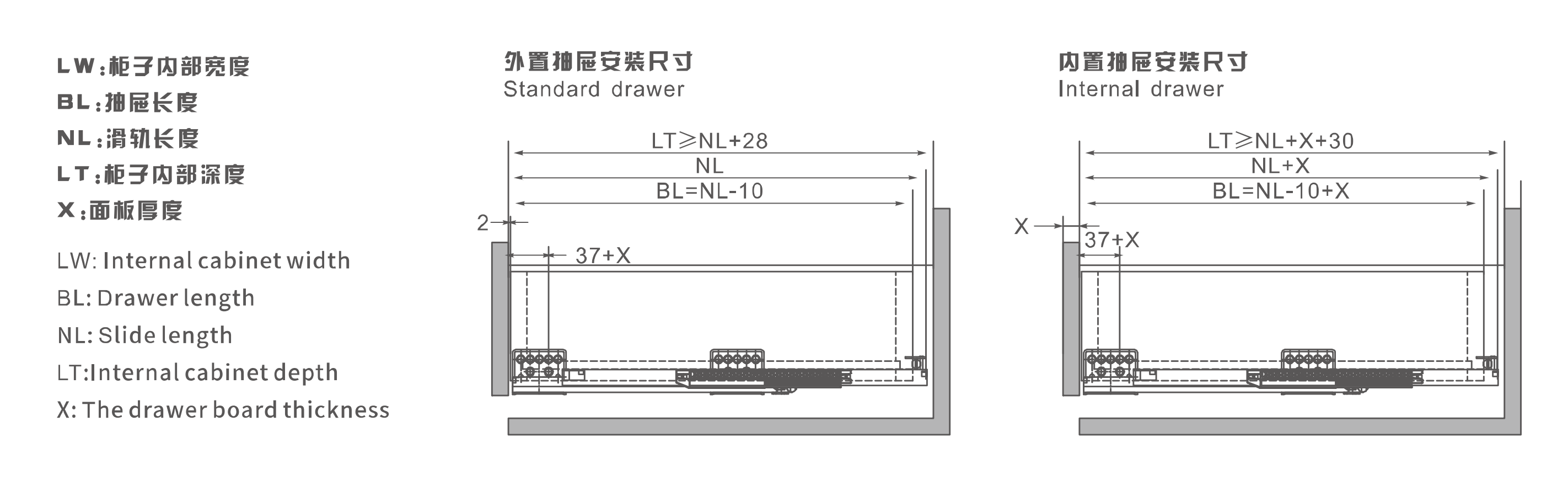

Installation Technical Drawing

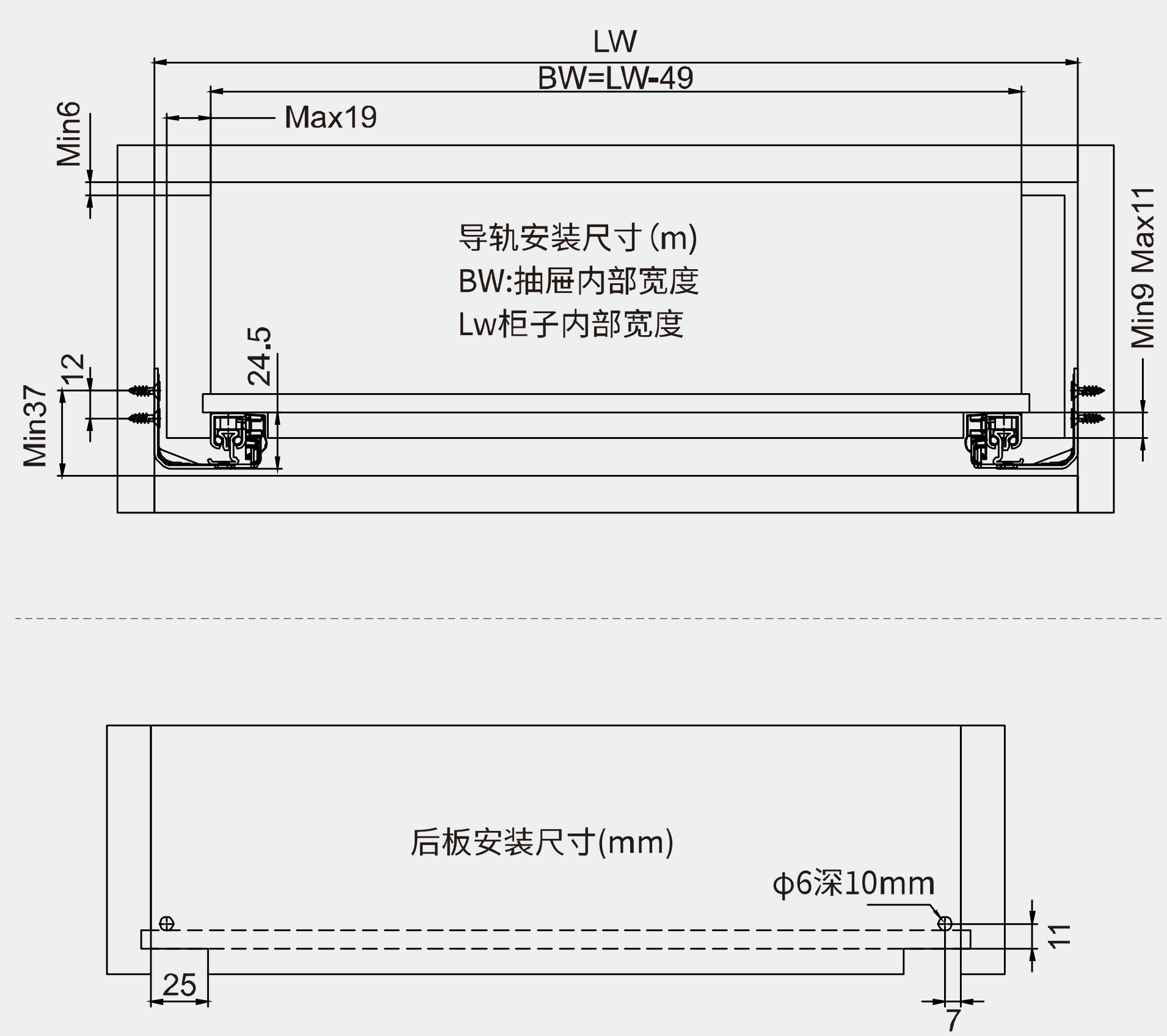

Installation Technical Drawing
