YH901 B Type Full Extension Concealed Slide
YH901
Category: Concealed Slide
-
Material
Zinc Plating Steel -
Max. loading capacity
35 KG -
Durability
50,000 Cycles -
Finish
Zinc Plating -
Length
12"-22" 6 Types of Length
Concealed Slide
The combination of smooth sliding and strong structure.
Using precision pulleys and wear-resistant tracks,
Bringing a timeless, lightweight and silent silky walking experience.
Technical Specifications
| Parameter | Description / Specification |
|---|---|
| Material | Zinc Plating Steel |
| Max. Loading Capacity | 35 kg |
| Durability | 50,000 Cycles |
| Finish | Zinc Plating |
| Length | 12", 14", 16", 18", 20", 22" (6 types of length) |
YH901
Installation Guide

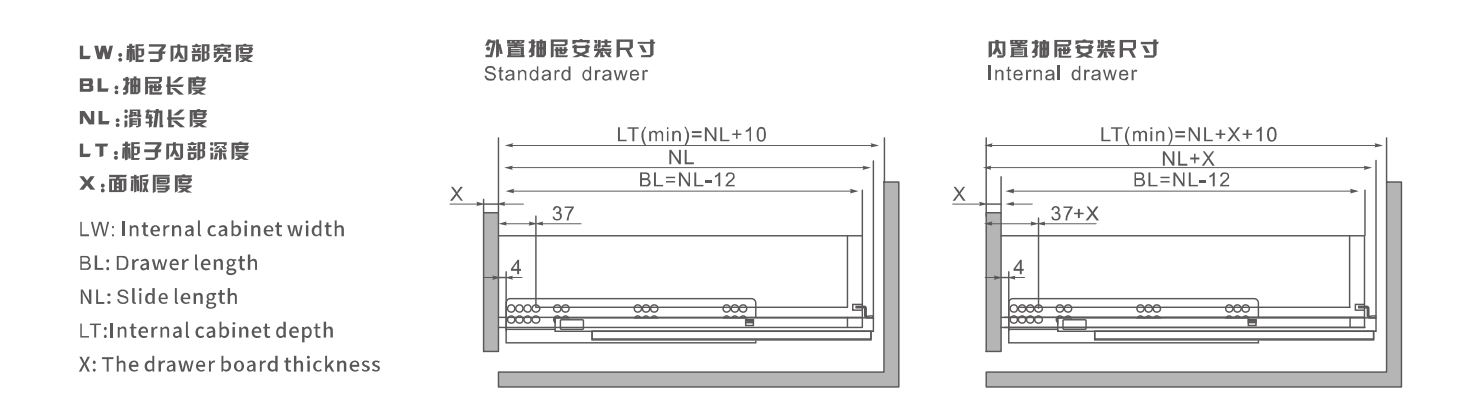

Slide Installation Drawing

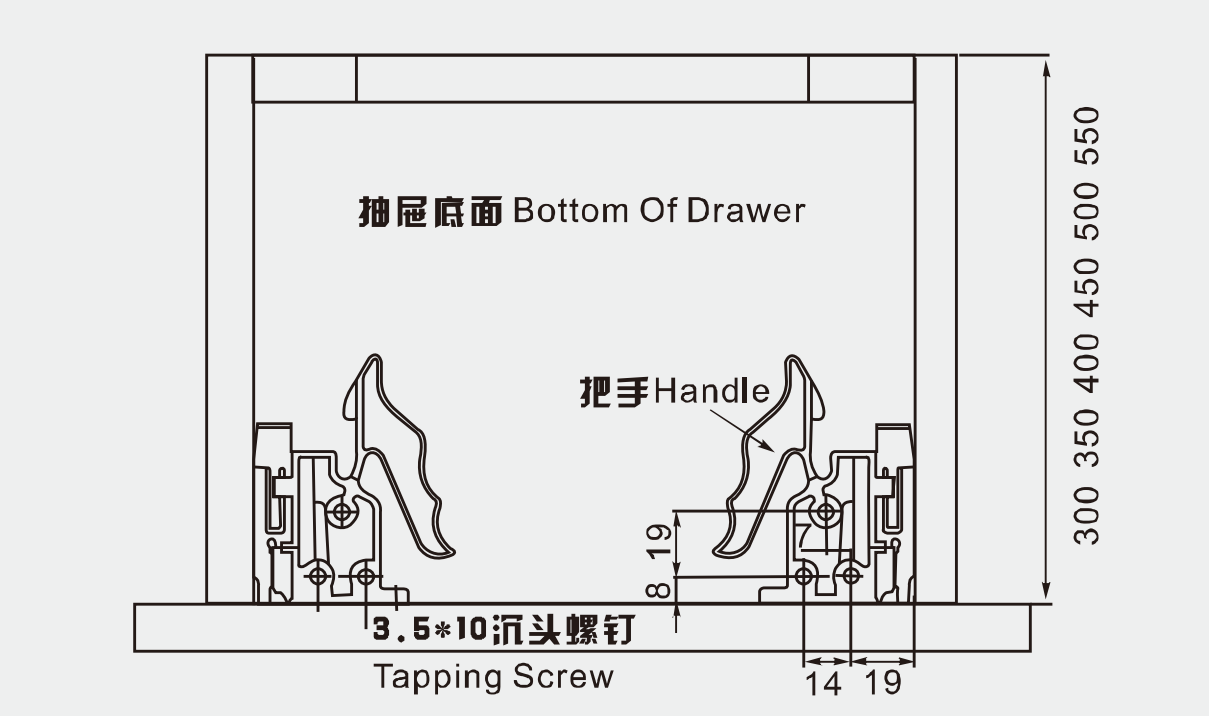

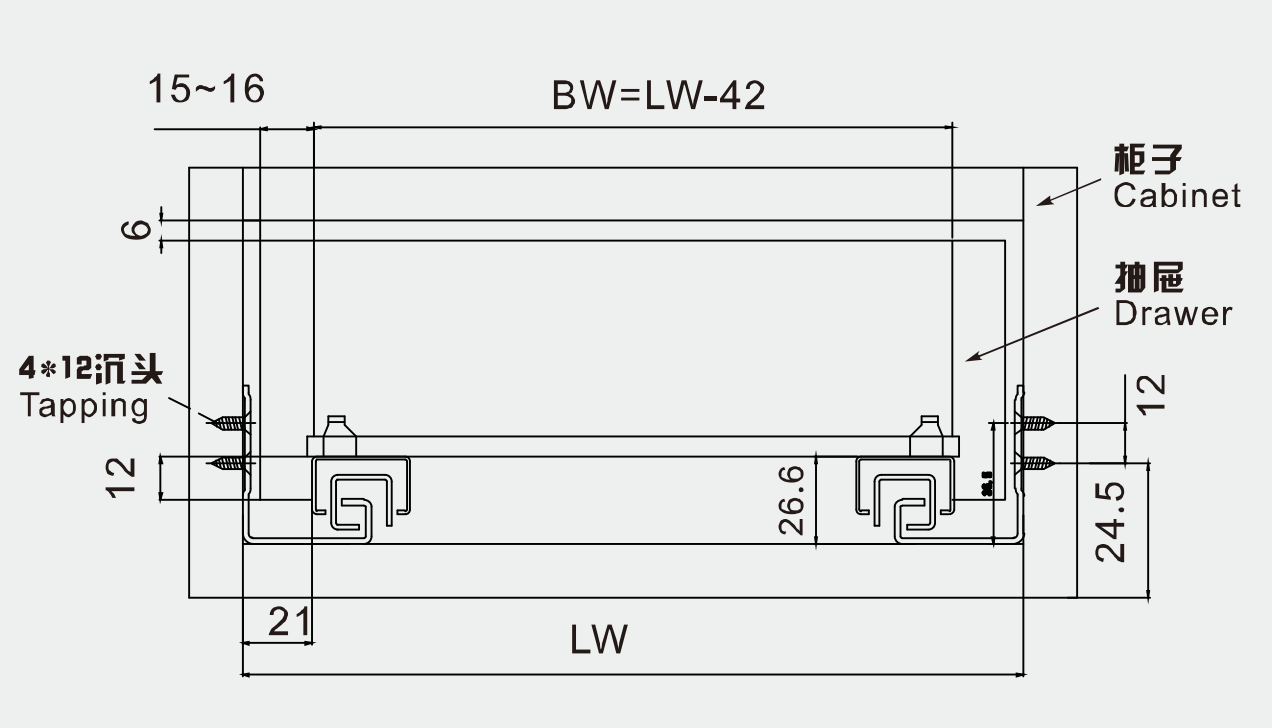

Installation Technical Drawing

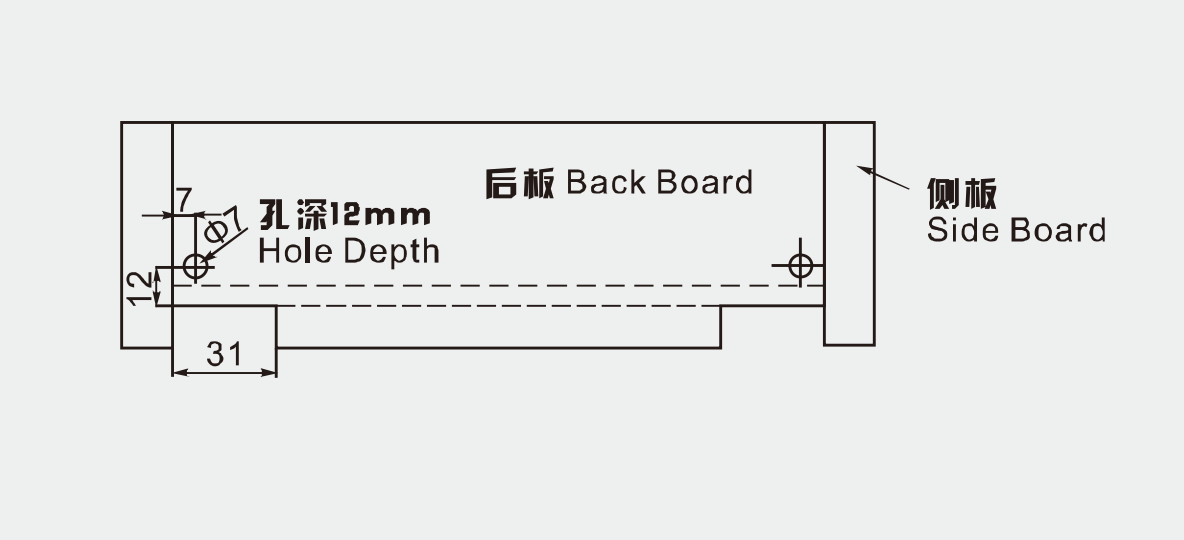

Installation Technical Drawing
Installation Technical Drawing
