Precision engineering hidden in an outstanding metallic finish.
Engineered for multi-dimensional adjustment, heavy-duty support,
and a lifetime of silent, corrosion-resistant movement.
Category: Hinges
Cup Diameter
35mmCup Depth
11.9mmMax.Opening Angle
95ºDoor Drilling Distance(k)
3-7mmThickness OfDoor(t)
16-28mmMaterial For Cup
lron with black agate platingMaterial For Arm
lron with black agate platingMaterial For Mounting Plate
lron with black agate plating
ADAMS delivers a complete hardware system solution built on precision engineering and advanced manufacturing, featuring a perfect motion experience with smooth, stable, and silent opening & closing, a high-durability design tested up to 50,000 cycles for long-term reliability, an integrated system approach with unified solutions across hinges, slides, and lift systems, easy installation & adjustment with a user-friendly design for efficient assembly, and international standard performance exceeding global quality benchmarks.

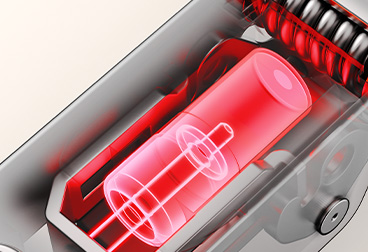

The precision small hydraulic cylinder provides just the right amount of pressure for speed control.

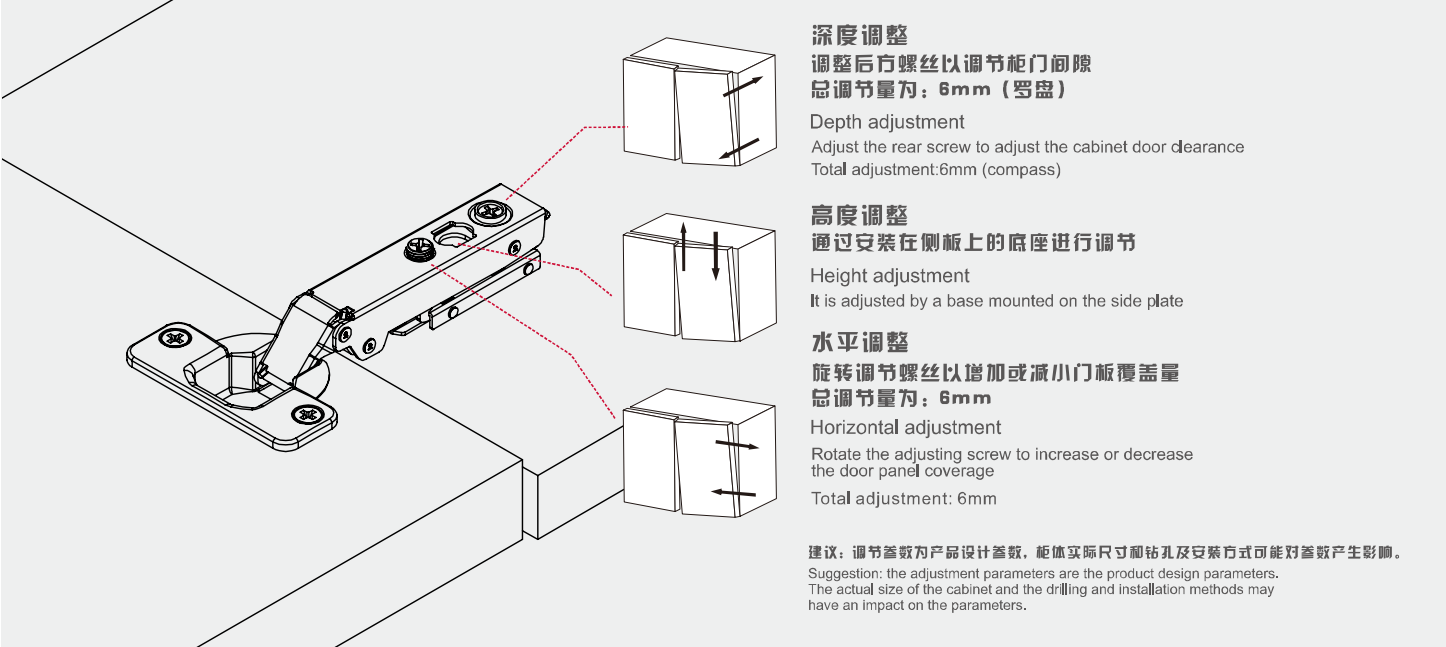

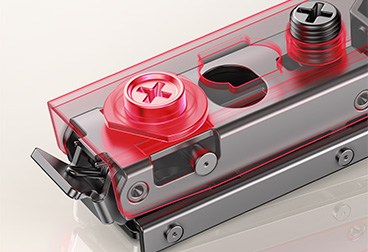

Compass-style adjustment and calibration are effortless.

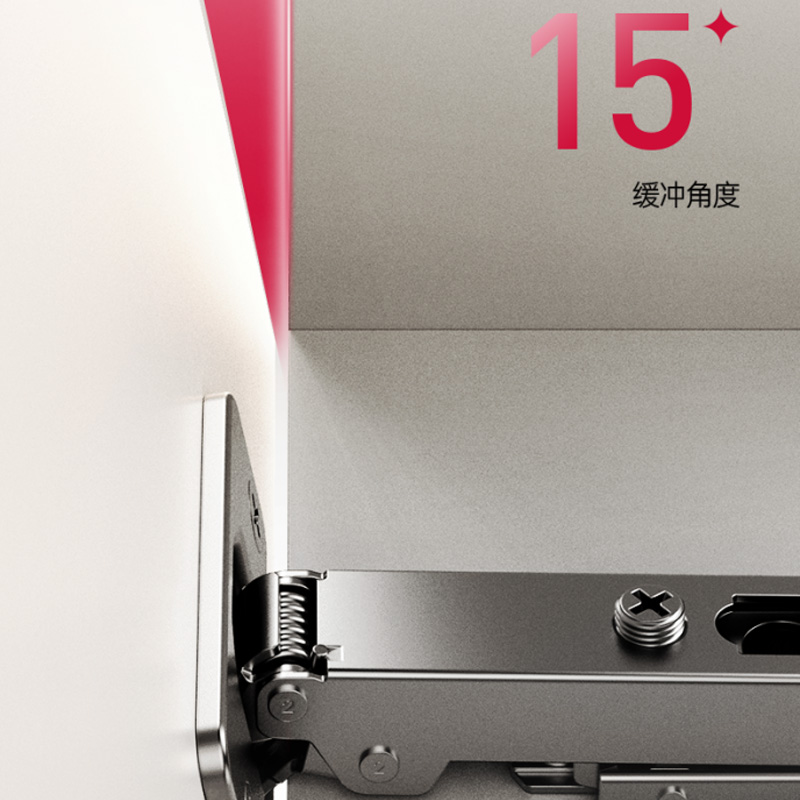

Small angle buffering and easy opening and closing
The cabinet door only opens 15 degrees, and the buffer gently accommodates every opening and closing
New two-stage force precision control opening and closing controlled by you
Stop immediately at the beginning and slowly close at the end, with the angle and weight controlled by you
| MATERIAL (ARM/CUP/BASE) | Cold-rolled Steel / Hardened SS / Zinc Alloy |
|---|---|
| FINISH OPTIONS | Nickel Plated / Matte Black Powder / Gunmetal |
| LOAD CAPACITY | 7.5kg per pair (standard cabinet height) |
| OPENING ANGLE | 105 Degrees |
| DOOR THICKNESS | 16mm - 22mm |
| CUP SIZE | 35mm Diameter / 11.5mm Depth |
| MOUNTING SCREWS | φ3.5 x 15mm (Included) |

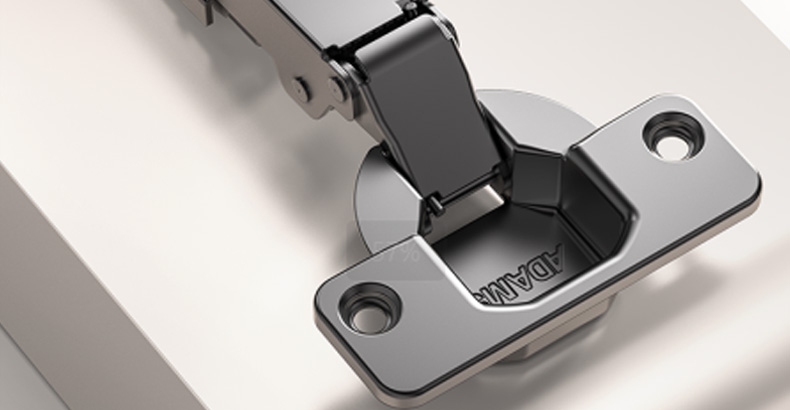

GM03B
Products undergo strict testing including 48-hour salt spray and 50,000-cycle durability testing.
Products undergo strict testing including 48-hour salt spray and 50,000-cycle durability testing.
Yes, our products meet and exceed international standards.
Yes, we provide complete opening and closing system solutions.
