Precision engineering hidden in an outstanding metallic finish.

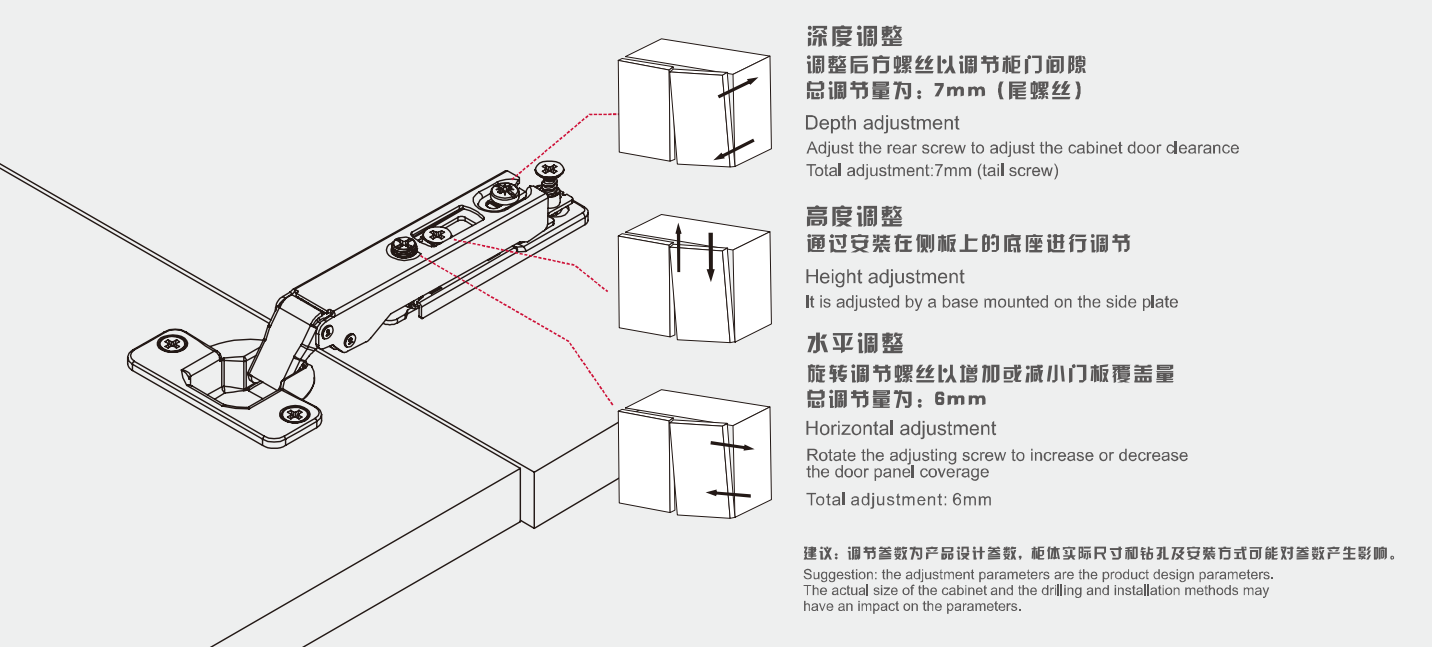

Engineered for multi-dimensional adjustment, heavy-duty support,
and a lifetime of silent, corrosion-resistant movement.
Category: Hinges
Cup Diameter
35mmCup Depth
11.9mmMax.Opening Angle
105ºDoor Drilling Distance(k)
3-7mmThickness OfDoor(t)
16-28mmMaterial For Cup
lron with nickel platingMaterial For Arm
lron with nickel platingMaterial For Mounting Plate
lron with nickel plating| Technical Attribute | Specification |
| Cup diameter | 35mm |
| Cup depth | 11.9mm |
| Max. opening angle | 105° |
| Door drilling distance (k) | 3-7mm |
| Thickness of door (t) | 16-28mm |
| Material for cup | Iron with nickel plating |
| Material for arm | Iron with nickel plating |
| Material for mounting plate | Iron with nickel plating |
Gm02
